High efficient mine ventilation fans :

The MAYA energy efficient mine ventilation fan has set the standard for high efficiency and low maintenance since its introduction. Our indigenous fan engineering know-how is utilized so that our fan you select today provides the broadest range of configurations and the highest capacities available in a mine ventilation fan.

For decades, MayaFan has been a leading producer of fans for fulfillment of varying requirement of this industry. Maya mine ventilation fan takes advantage of this experience by bringing it down to energy consumption. And also provide a special low noise fan series which bring down noise as low as 10 dba less compare to conventional mine ventilation fans.

For performance that exceeds specifications on a tight budget, the Maya Fiberglass mine ventilation fan incorporates field-proven, industrial-quality fans. You get the unsurpassed integrity, performance, and reliability you'd expect… at a price that may surprise you.

These fans are categories as - Main mine ventilation fans, mine ventilation booster fan and auxiliary mine ventilation fans.


Special Feature Contact MayaFan
Maya mine ventilationFans Image

Creative Ideas

AT Maya Fans we always remain creative to deal with the challenges in the field of tailor made mining fans, so far we have developed fan for up to 400 mm static pressure that to in single stage fan.

Excellent Features

We are pioneer to introduce FRP material in this critical application and installed more then 100 fan including all type of mine ventilation fans

Fully Responsive

AT Maya Fan We never force fit our standard existing fan, but remain responsive to input design data and develop new product as and when it required

MINE VENTILATION FAN DEVELOPMENT PROCESS

We at mayafanfrp do not compromise on any front and for any new requirement we do not Force customer to compromise with standard available product, instead we always remain open for new development, this new mine ventilation fan development process is remain as in following step

  • Fan Data Collection

    It is must to have accurate data (Fan duty point) for fan development so we do collect data on field with our technical expertise and high-tech equipment

  • Fan Design

    We analyze collected data and conclude for a specific design point as well as keep range of operation in mind while developing new fan

  • Validation

    It is must to validate each of design outcome to decide for the best solution, and we have full modeling and testing facility inhouse.

  • Production

    Once final fan design concluded, it is handed over to the production team for preparation of tooling. to final launch this product

Types of mining fans

Mine Ventilation Fans are mainly categories as main fan or surface fan, booster fans, and auxiliary mine ventilation fans. below are the detail of these categories fans...

main-mine-ventilation-fan

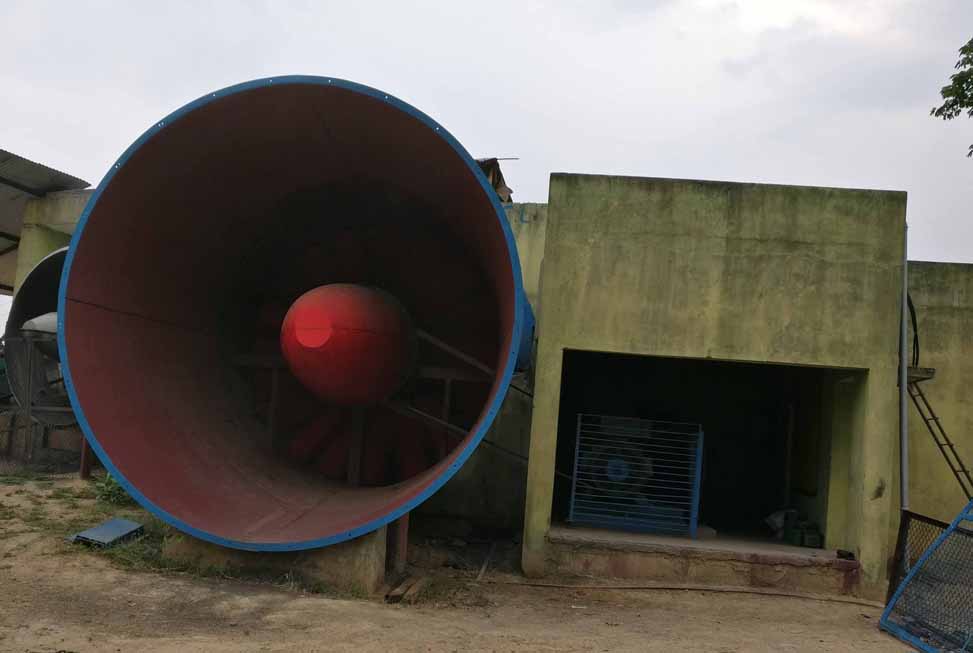

Main Fans

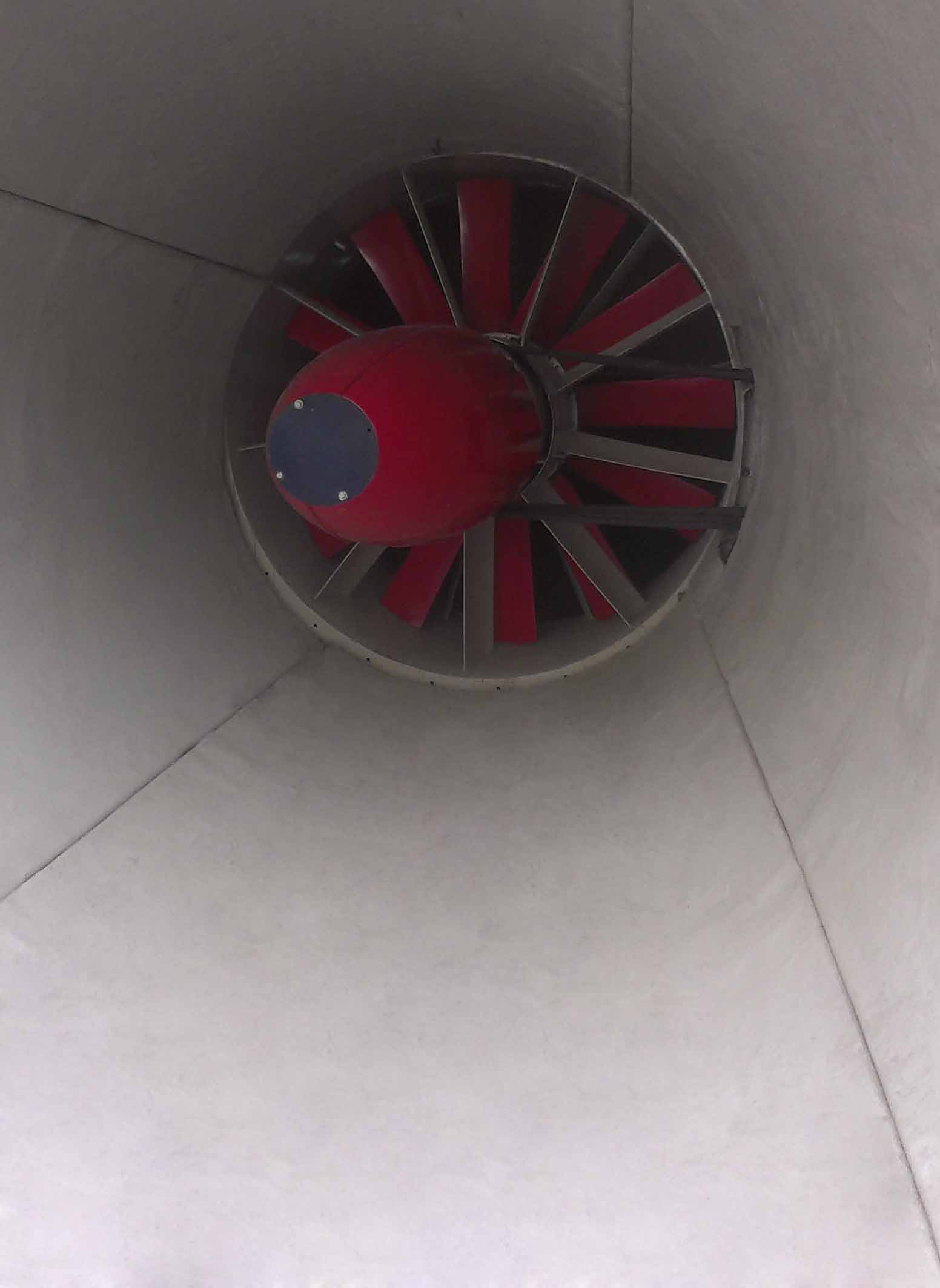

Main Mine Ventilation Fans

Main mine ventilation in an underground mine is of critical importance to the occupational health and safety of underground employees. these are so critical equipment that in case of main ventilation fan shutdown it is instruct to close all work and evacuate from mine declaring emergency situation


Main mine ventilation fans is the maximum power consuming equipment in the mine considering all these conduction maya main ventilation fans are -

  • Robust design of maya main ventilation fan.
  • Maintenance free operation of maya main ventilation fan
  • At maya we provide remote monitoring of our main mine ventilation fans
  • Maya fan offer high efficient low operating cost main mine ventilation fan
  • our Main mine ventilation fans are low speed and quite in operation.

Due to above feature our main mine ventilation fans achieve great success and within very short time we are having installation in -

  • Coal mine
  • Manganese Mine
  • Gold Mine
  • Zinc Mine
  • Hard-rock (metallic) mines ventilation
auxiliary-mine-ventilation-fan

Auxiliary Fans

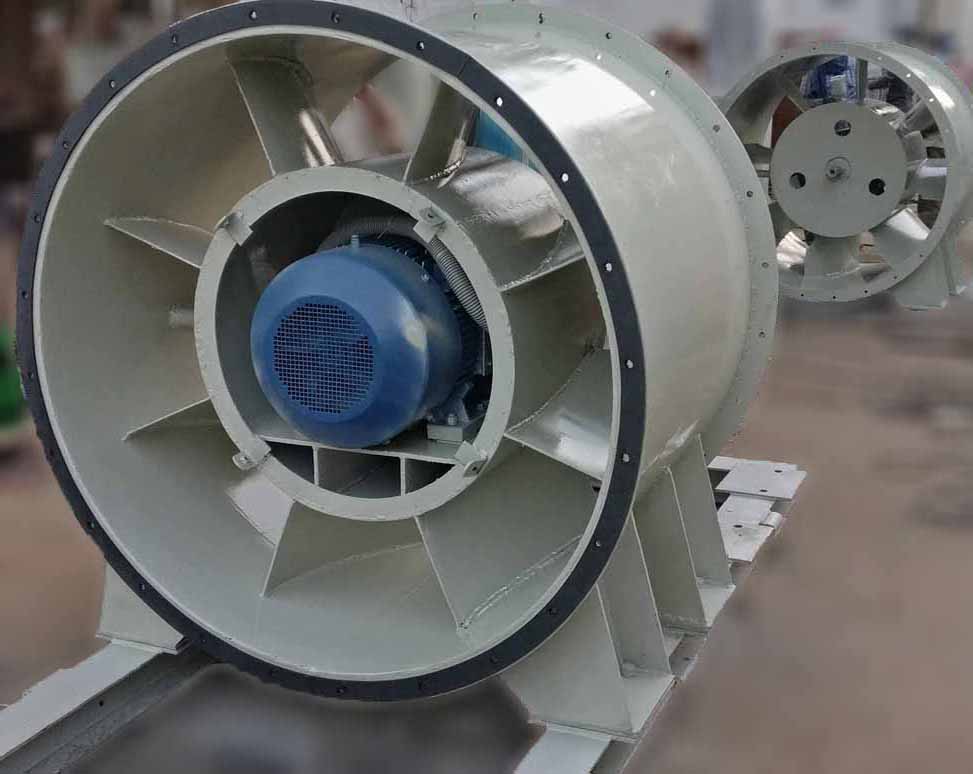

Auxiliary Mine Ventilation Fans

Most of the auxiliary mine ventilation fans supplied are of normal tube axial type fan and maximum possible efficiency of tube axial fan is far less then aero foil fans, but at maya fan we are manufacturing air foil bladed auxiliary ventilation fan which is having very high efficiency.

Maya auxiliary mine ventilation fans are mainly of single stage because unlike double stage auxiliary ventilation mine fans, single stage fan is much more efficient. even if we consider the same efficiency for single stage and double stage fan then in double stage case we have to multiply the efficiency of both impeller thus resultant efficiency reduced significantly.

Light in weight as auxiliary ventilation fans operate in small branches of mine thus it is very important to have easy in handling, at maya we made our auxiliary fan very robust yet so simple and handy that it can be handled in any of complicated location


Maya auxiliary ventilations are available in various material as -

  • Anti static fiber auxiliary ventilation fan for coal mine where aluminium is not allowed.
  • Aluminium alloy fans.
  • Steel blade for the environment where aluminium is not allowed and frp is not sustainable like in case of very high tip speed requirement.
mine-ventilation-booster-fan

Booster Fans

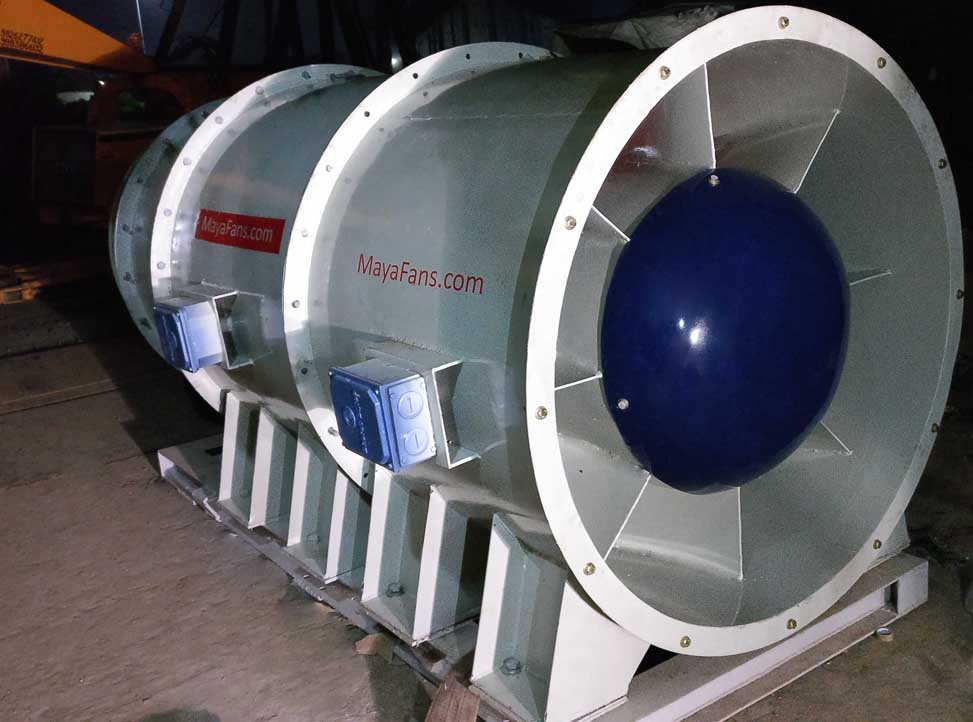

Mine Ventilation Booster Fans

A mine ventilation booster fan is a primary fan that is in series with another primary fan. Without the booster fan operation, the total mine airflow will fall significantly. Booster fans are typically installed as mine develops and primary fan no longer has the pressure or flow capability to service increased resistance of operation. In this sense, booster fan operates as an integral and “symbiotic” unit with original primary fan to provide sufficient total airflow for mine.

Mine booster fans are technically main fans which are installed underground to maintain required airflow by overcoming the mine resistance. Booster mine ventilation fans can reduce pressure of main fan and decrease system leakage and total required air power.

A mines booster fan is an underground ventilation device installed in the main airstream (intake or return) to handle quantity of air circulated by one or more working districts. It is installed to operate in series with a main fan and boost air pressure of ventilation air passing through it.

Provision of additional air quality at strategic locations within the mine and separate from long wall split.

  • Increased pressure to drive airflow into working splits
  • Reduction of intake to return pressure differential, out bye of the booster fan location
  • Reduction in out bye leakage
  • Reduction of main fan airflow requirements for a given in bye performance
  • Optimization of power utilisation

Key Feature of Maya Mining booster fans -

  • High efficiency - Latest air foil
  • Optimization for lower operating cost
  • Higher safety factor - we prefer to consider safety factor around 10.
  • Robust construction of casing and diffuser.
  • maximum utilization of composite material in maya booster fans.
  • compact design for the mine having having space restriction for movement and installation.
frp-mine-ventilation-fan instalation



Mine ventilation Fans Key Feature

  • Low Operating Costs/Low Energy Consumption
  • Quiet by Design
  • Long Life Construction
  • Performance for All Seasons
  • Below are detail of mine ventilation Fan Key Feature

Low Operating Costs

Maya High efficient airfoil blade design, optimization of twist cord and cross section provide maximum efficiency. Involvement of most advance composite material reduce turbulence and produce smooth linear flow of air which further reduce energy wastage significantly thus increase overall efficiency of mine ventilation fans.

We have also eliminate one of major cause for power wastage in fan which is very often phenomenon i.e. wrong selection of fan for the duty point or choosing over size fan for a duty point. Due to this reason more than 50% fan in the industry operate on lower efficiency thus unnecessary wastage of power observed. We eliminate this by offering final selection of fan throe our designer. Who chose optimum solution for the given duty point of mine data.


Quiet by Design

By application of latest airfoil and combination of different material for different parts compare to any conventional mine ventilation fan maya fans are relatively silent when compared for same duty point under same operating conduction.
Whereas for special requirement of extra silent fan we have developed a full series of low noise mine fans which can reduce sound pressure level as low as 10 dba compare to conventional fans. in general we are having habit to design fan on low tip speed and as fan sound power is directional depends on tip speed therefore maya fans remain relatively silent.


Long Life Construction

Maya mine ventilation fans is manufactured and assembled from corrosion-resistant materials i.e. Fiberglass and hot-dip galvanized construction which meets the corrosion resistance and equipment life requirements of your most demanding heavy industrial applications while still delivering an outstanding value. Also available with Series 300 stainless steel is an optional upgrade to the fans metallic component and includes a 5-year limited warranty. Maya mining Fans are manufactured in ISO-2015 certified facilities, attesting to our commitment to comprehensive quality processes and systems.
Note – For special duties fans and working conduction we do also manufacturer mine ventilation fan fans from high grade special material which include higher grade of Epoxy and various grade of aluminium and Stainless steel.


Performance for All Seasons

Fan is a constant flow machine and therefore for varying need of flow capacity for equipment to keep maintaining its perform despite critical variation in weather Maya mine ventilation fans are design for very broad range of operation our fans are having good amount of reserve margin for both airflow and resistance/pressure therefore these fans are capable of maintaining mine ventilation performance throughout the year in all type of seasons.


Low Maintenance/Less Downtime

Maya FRP mine ventilation fan are made of high quality material and robust in design and also because of low operating tip speed overall system life increase it also reduce chance of failure and reduce impact in exceptional case of accident.
Unlike painted fan we do provide permanent coating of gel coat which remain integral part of fan blade body and do not get separated due to erosion.
All above advantage made Maya mine ventilation fan almost free from maintenance thus do not required any additional down time and can be maintained along with other fan system component and need no down time other then system component thus we call it zero maintenance mine ventilation fans.

Maya mine ventilation fan construction

Here are the list of maya mine fan component with there brief detailing


Blade – Maya mine ventilation fan blade is made of latest airfoil similar to that of air plane wing we do choose most advanced airfoil possible for the fan to provide maximum efficiency by this only we have achieved superior performance which is far ahead in the mine ventilation fan industries, our blade is very robust in construction and designed for 7-10 times of operating load we also provide superior wear resistance material to maintain surface stability for long period of time which prevent efficiency deterioration. recently we have develope a special series in mining fans in which we are providing state of the art fans in fiber reinforce plastic we are using this superior epoxy material for the blade tip speed of up to 22000 FPM

This FRP material is having some of very charismatic property it is very much possible to product any complicated shape with ease thus provide economical solution some of its special feature are and listed below -


H ub/Boss –used in mine ventilation fans are of heavy in construction in this we are using heavy thickness mild steel plate, cast iron or Aluminum clamp and stainless steel hardware to provide long life we are coating all mild steel part with heavy thickness of zinc.
Note - Optionally we also provide customize hub/Boss on special demand of customer, like caste hub boss, Spider Type Fabricated hub etc.


TLTaper Locking – in most of our mine ventilation fan hub we preferred to have taper locking arrangement and this is provided with several type of different locking arrangement which is proven in field these taper locking are mostly made of Cast iron or of stainless steel.


Fairing inlet and outlet - these are in built component in mine ventilation fan, as in mining fan pressure remain high and air trave at very velocity therefore even small turbulence harness unnecessary energy so it is very must to have smooth air flow through out the fan system and well design and construed inlet out let fairing contribute significantly, we at maya fan make these fairing in composite material to provide sooth finish which help keeping laminar uninterrupted flow through the fan system


Inlet guide van - are used to guide inlet air in such a way that it will inter in impeller at a particular angle so that it will have minimum losses for changing the direction of air under fan impeller.


Outlet guide van - are used to guide exit air in such a way that it will remain linear to the system with minimum turbulence in it. which will prevent eddies generation and minimise friction of air with the fan casing surface.


Silencer in mining fan - are used to minimise fan sound to desired acceptable level. these mine ventilation fan silencer are designed to match with the shape of fan and to have minimum pressure drop in it.


Fabrication of mine ventilation fan - mining fan is having large component of fabrication starting from its main body to diffuser and many other parts these are required to have a good control there for it is manufactured under closed control of ISO system and are maintained as per Section IX, ASME

mine ventilation fan Supporting Tools

In this section we have listed all possible means to create better understanding about maya mining fan, here we are providing our mine ventilation fans special feature to visualize difference in fans as well as to create awareness of various parameter involve in mine fan, also we here providing general tools like various calculation and measurement procedure...

mining-fan-installation
